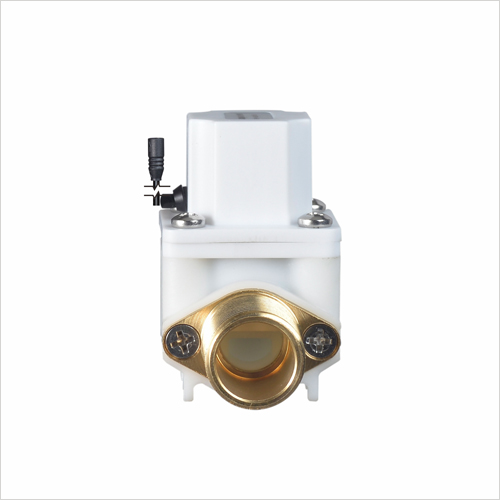

Technical Feature  160 series

Instruction

Rated Voltage

DC3V

DC6V

DC12V

DC24V

Coil resistance

10Ω

15.5Ω

36Ω

130Ω

Min current

300mA

258mA

250mA

138mA

Switch mode

DC pulse(latching type)

Pulse width

20-40ms

Operating pressure

0.02Mpa-0.8Mpa

Media temperature

1ºC--75ºC

Responding time

Open ≤0.3s  close≤1s



Pressure(Mpa)

0.02

0.05

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Flow(L/min)

0.5

9.7

16.3

23.5

28.2

32

35.6

38.9

42

44.9



Performance test

Strength test

Water pressure

2.5MPa/1min

No-load test

Voltage 3.6V pulse width 20ms

Permissible limiting voltage

V*1.15

High water pressure start and close

At water pressure 0.8MPa,voltage DC4.5V,pulse width 20ms,the solenoid valve can be started and closed normally

low water pressure start and close

At water pressure 0.02MPa,voltage DC4.5V,pulse width 20ms,the solenoid valve can be started and closed normally

Leakage upon high water pressure

1.2MPa without leakage

Leakage upon low water pressure

0.02Mpa leakage≤0.1ml/min

Electric strength

Among conductive part, mounting hole and nonconductive metal, it can withstand 500V/50Hz,leakage current 0.75mA for 1 min without the breakdown

Insulation resistance

The resistance between the charged part and nonconductive metal part tested by megohm meter of 500V ≥20MΩ







Sealing test







Static pressure

Air

High pressure

1MPa

Low pressure

0.02MPa

Cold water

High pressure

1.2MPa

Low pressure

0.02MPa

Hot water

High pressure

0.8MPa

Low pressure

0.02MPa

Service life

≥1000000 cycles(CJ/T 194-2004)



Requirements of working environment

Temp of working environment

1℃--60℃

Permissible limiting pressure(water)

≤1.2MPa

Humidity of working environment

35%-90% RH

Mounting direction

It is mounted in vertical. The inclination do not exceed 15 degrees

Storage temp

-5--80℃( no freezing state)

Storage humidity

25%--95% RH(No condensation state)
