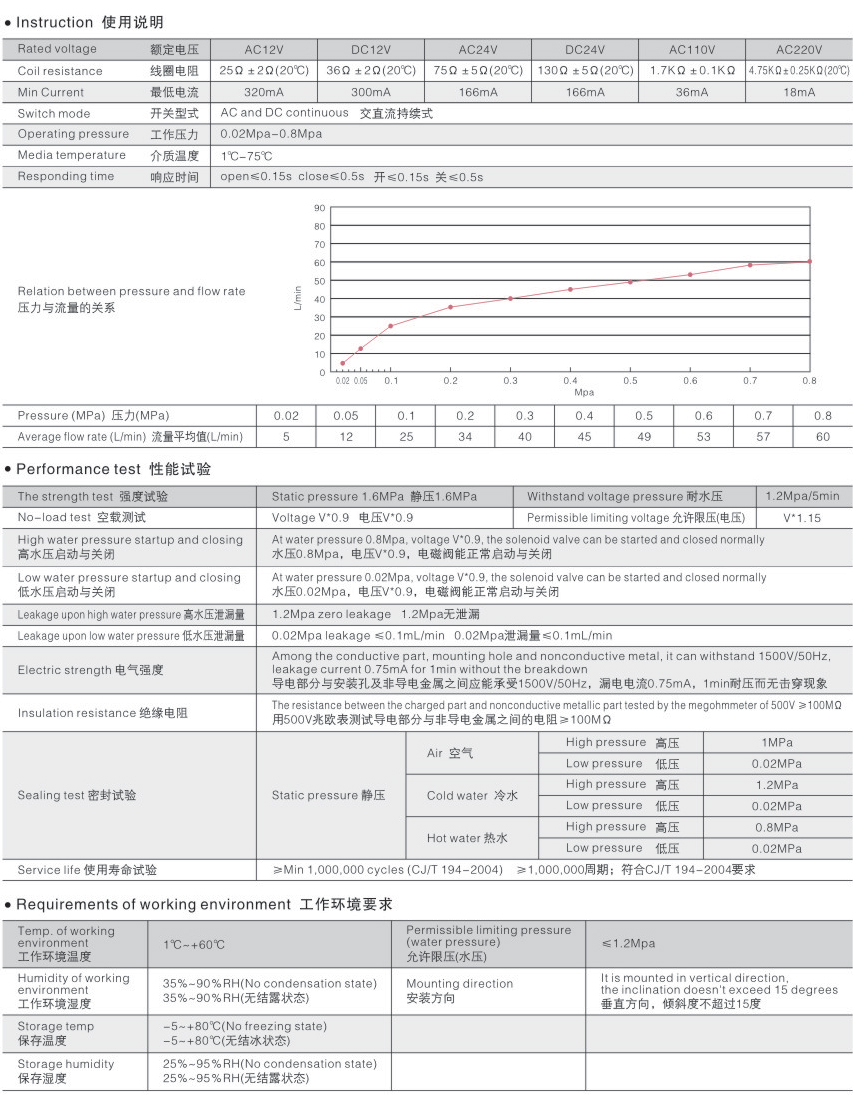

Technical parameter

Size of installation

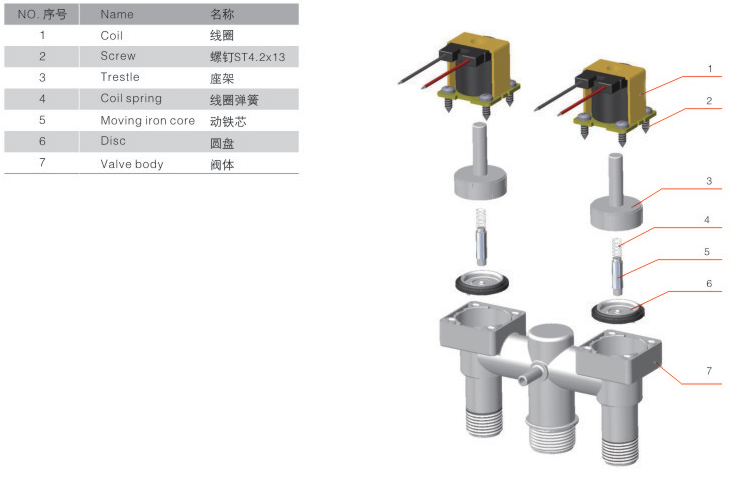

Structure Diagram

Note

1、Pis not© the detailed specification and quantity according to the follows when placing the order.

For example- FD-801-2/DC6V/Direct current pulse/ 2-pin water proof socket A means：

①Item number FD-801 -2

② Voltage: DC6V

③ Switch type: pulse

④ Valve with socket A

2、If there are some special requirements, it should be pointed out while ordering
